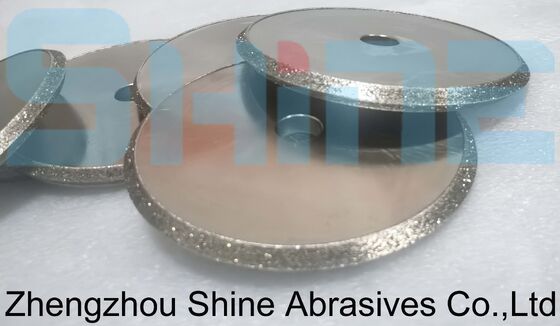

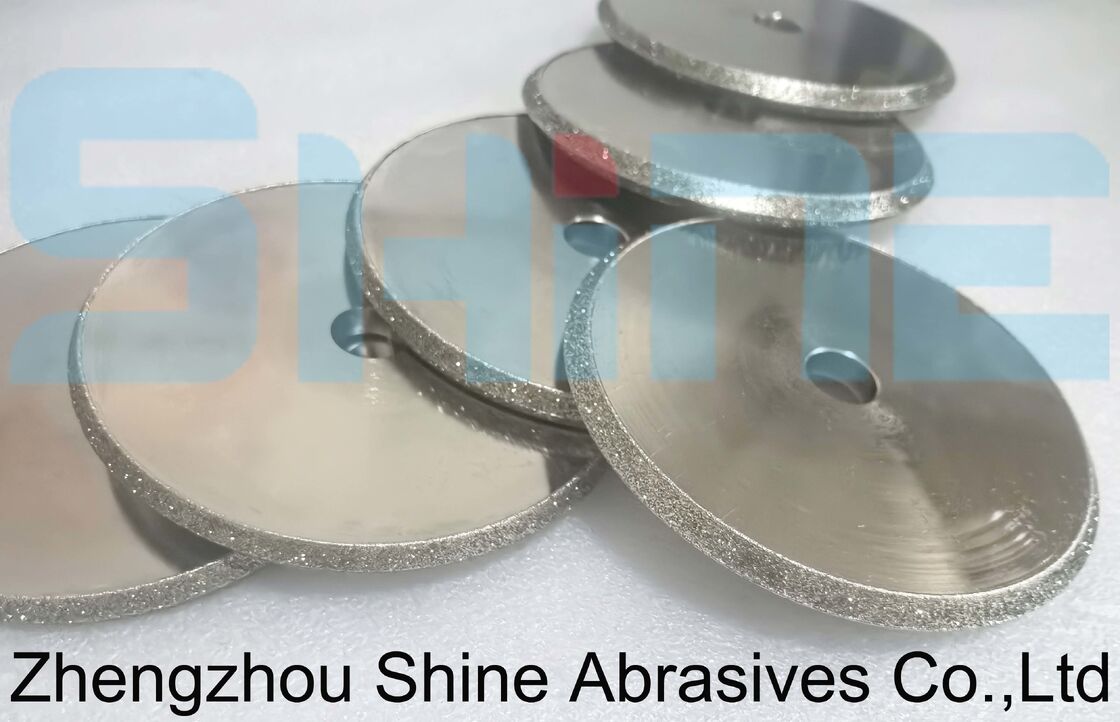

1E1 Electroplated diamond wheel for cast iron profile grinding sharpening

1E1 Electroplated diamond wheel for cast iron profile grinding sharpening

1E1 150mm electroplated diamond wheel" combines a wheel shape code (1E1), a diameter (150 mm), and an electroplated diamond abrasive layer. Here’s what each part means and why this wheel is useful for cast-iron profile grinding and sharpening.Confirm the 1E1 shape with the supplier drawings so the wheel matches the required profile radius/contour precisely.Use appropriate peripheral speed—many electroplated diamond wheels run well at high surface speeds but check the wheel rating.Use intermittent cuts, light infeed, and coolant if recommended to control temperature and prolong wheel life.

Diamond vs iron: Diamond reacts with pure iron at high temperature, so for high-speed heavy stock removal on steel or hot conditions it can degrade. Cast iron (with graphite) is generally less chemically aggressive than pure iron, but monitor wheel wear and temperature.
Cost: Electroplated diamond wheels are more expensive than conventional abrasives, though they often last longer and give better results for precision profiling.
Single-use layer: Electroplated wheels have a single abrasive layer. Once the monolayer wears down the wheel must be replaced or recoated—there’s no gradual self-sharpening like in some porous/bonded wheels.
Machine & speed compatibility: Match wheel RPM and machine setup to the wheel’s rated peripheral speed and the manufacturer’s recommendations. Excessive speed or thrust can shorten life or cause damage.
Safety: Use proper guards, eye and respiratory protection—cast-iron dust and coolant aerosols can be hazardous.
